Platform: Moterra Neo
Model Name: Moterra Carbon 2
Model Code: C25272U
Frameset
Frame: Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Fork: RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steerer, 44mm offset
Headset: Acros integrated sealed bearing, tapered

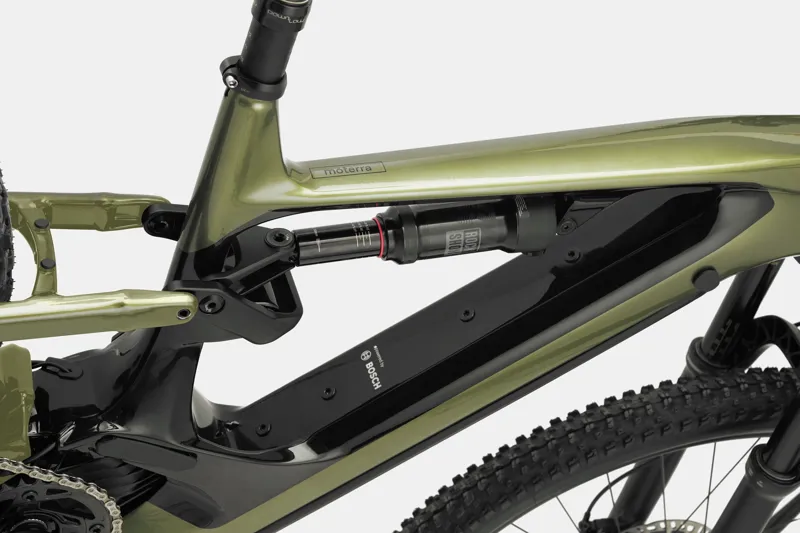

Rear Shock: RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
E-System

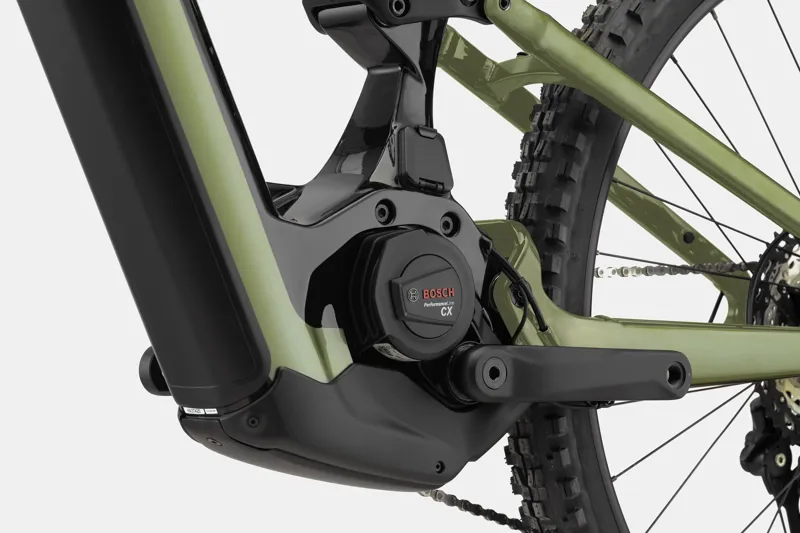

Drive Unit: Bosch Performance Line CX 250W
Battery: Bosch PowerTube, 750Wh
Charger: Bosch 4A

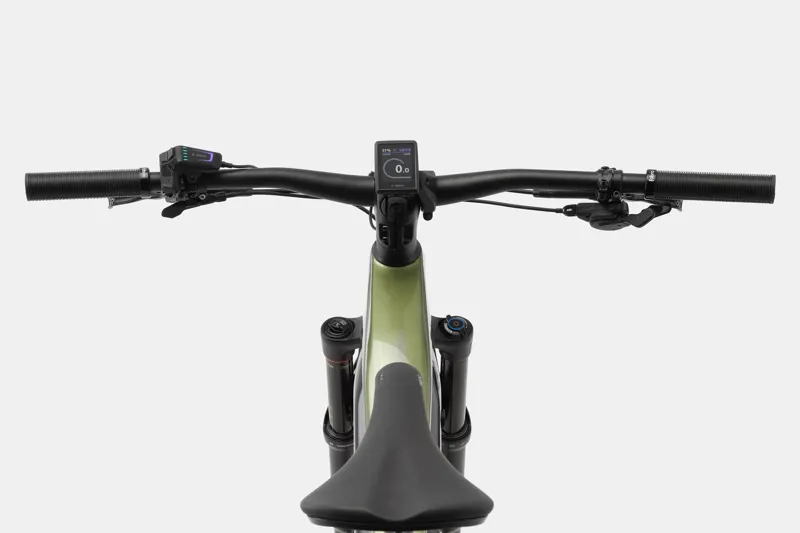

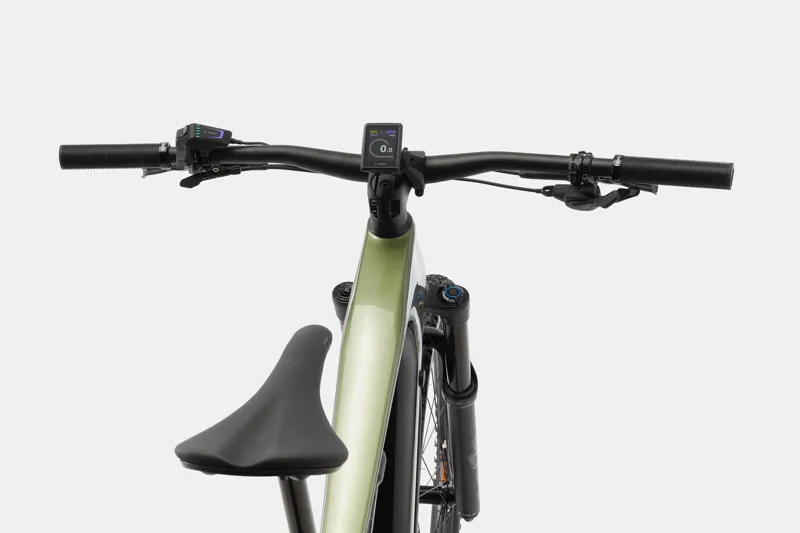

Display: Bosch Kiox 300 w/ LED remote
Certifications: UL 2849
Drivetrain

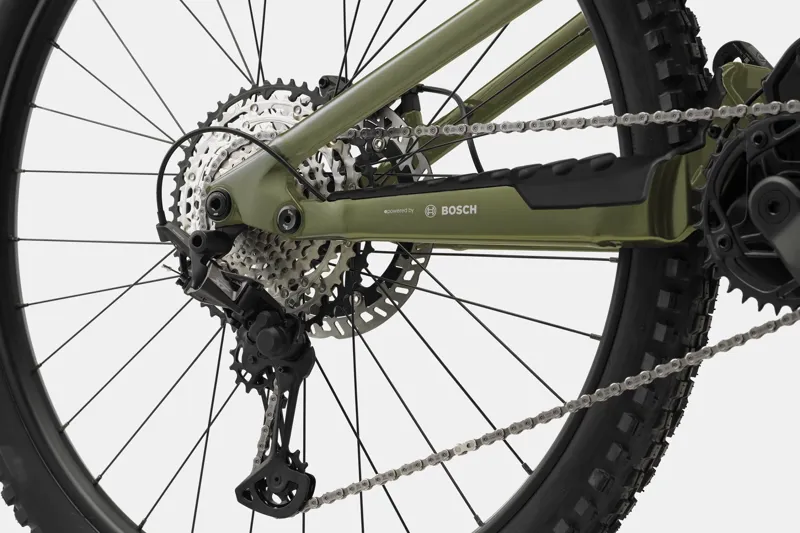

Rear Derailleur: Shimano XT
Shifters: Shimano SLX, 12-speed
Chain: Shimano SLX, 12-speed
Crank: FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Rear Cogs: Shimano SLX, 10-51, 12-speed
Brakes
Brakes: Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
Brake Levers: Shimano MT501 hydraulic disc
Wheels
Rims: WTB ST i30 TCS, 32h, tubeless ready
Spokes: DT Swiss Champion
Tire Size: 2.6
Wheel Size: 29
Hubs: (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Tires: (F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
Front Tire: Maxxis Minion DHF, 29x2.6", EXO, tubeless ready
Rear Tire: Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready
Components
Handlebar: Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
Stem: Cannondale 2, 6061 Alloy, 35mm, 0°
Grips: Fabric FunGuy
Saddle: Fabric Scoop Shallow Sport, steel rails
Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
Extra
Extra 1: Pre-installed light cable
